Completion of Extracardiac Fontan Circulation

10 years old, male diagnosed with ccTGA, atresia of Tricuspid valve, VSD and severe PA stenosis. Model after completion of Fontan circulation with extracardiac non-fenestrated graft

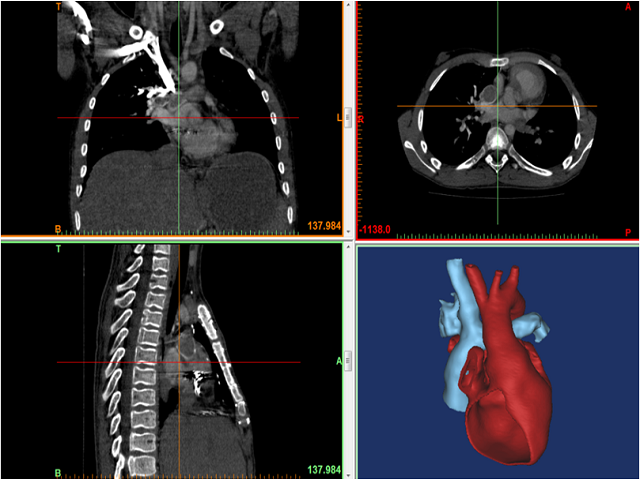

Medical data from CT

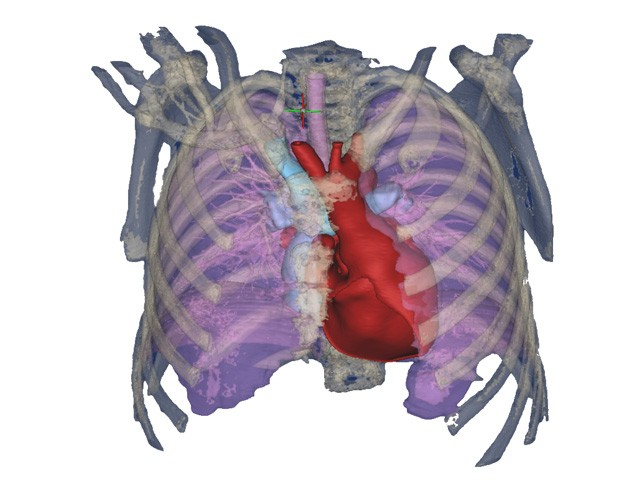

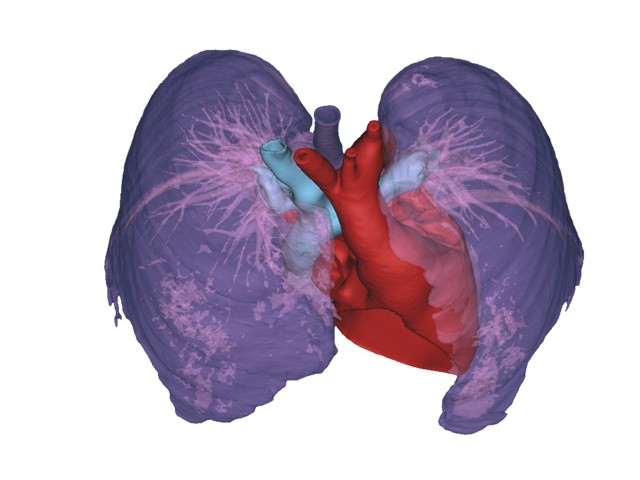

Segmentation method: Blood Pool border

Keywords: ccTGA, tricuspid atresia, Fontan

Category: Single ventricle/ Fontan Circulation

Case number: #0014

Hospital - Radiologist
IASO HOSPITAL
Dr. CHRYSANTHI CHLAPOYTAKI, Radiologist, MD
-

Surgical Team:
George E. Sarris, MD, PhD
FACC, FACS, FAHA, FCTS, FETCS
Chief, Department of Athens Heart Surgery Institute,
Pediatric Heart Surgery at Iaso Children’s Hospital

Chrysanthos Alexopoulos, MD
Chief, Department of Pediatric Cardiac ICU
and Pediatric Cardiac Anesthesiology

Eleftherios Protopapas, MD, MSc
Cardiac Surgeon, Chief of Clinical Protocols
Panagiotis Zografos, MD
Cardiac Surgeon
Nicolaos Hakim, MD
Cardiac Surgeon

Prodromos Zavaropoulos, EBCP
Perfusionist
Leonardo Bilalis BEng, MSc.
Design Engineer of 3D diagnostic models

3D Printer & Material used:
Connex 260 3, Soft tissue multiple colors.

3Dlife (www.3dlife.gr)

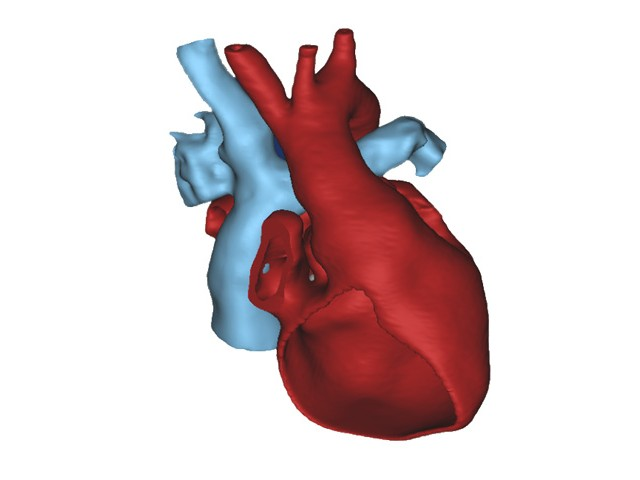

3D PDF file:

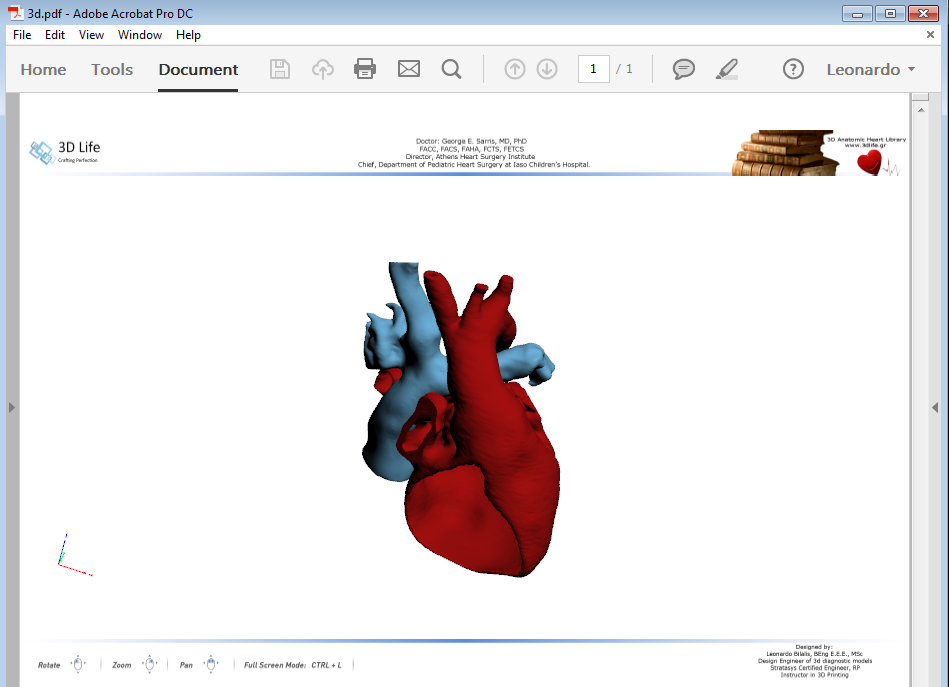

You can download the 3D PDF of this model and freely navigate to view all the details (pan, rotate, zoom). You will need to download the Adobe Acrobat Reader (it is free), since not all PDF readers are able to render 3D objects.

Get 3D PDF

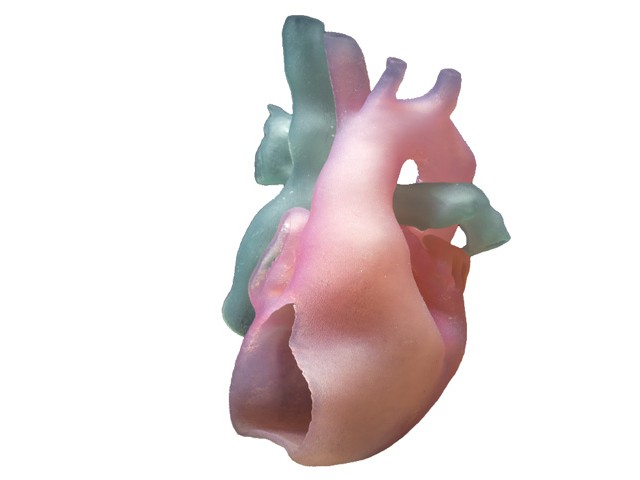

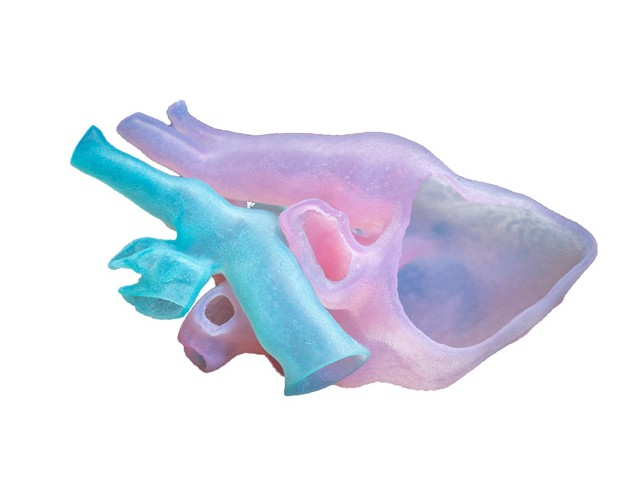

3D Printed colored model with high resolution and quality
